Stainless Steel Double Acting Diaphragm Pump , Positive Displacement Diaphragm Pump
Double Acting Diaphragm Pump feature:
1. No electrical motor - non sparking.
2. No mechanical seals or gland packing.
3. The pumps can run dry indefinitely without damage.
4. Safe for use in hazardous/explosive environments.
5. Variable flow - simply regulate the inlet air supply to adjust the pump flow from zero to max.
6. If discharge is clogged or closed pump stops immediately; no power consumed, no wear.
By opening discharge, flow starts automatically.
7. Self-priming from a dry start up to 6 meters without a foot valve.
8. Pressure up to 100 PSI (7 bar).
9. Operates submerged or with flooded suction.
10. No close fitting, sliding or rotating parts so can handle a wide range of fluids with high solid content.
11. Gentle non-shearing action.
Double Acting Diaphragm Pump Parameters
| Item | Description | Unit | Reference Figure |
| 1 | Maximum air inlet pressure | Mpa | 0.83 |
| 2 | Maximum flow rate | 1/Min | 192 |
| 3 | Maximum lift | M | 70 |
| 4 | Maximum outlet pressure | Mpa | 0.83 |
| 5 | Maximum particle size | mm | 3 |
| 6 | Weight | kg | 12.3 |
| 7 | Noise level | db | ＜70 |
Double Acting Diaphragm Pump Specifications
1. Non leakage
2. Good self priming performance
3. Convey all kinds of medium
4. Material:Cast steel,Alu,SS,PP
A 2 5 X X - X X X - X (model selection)
Form of pipe mouth:A-BSP B-NPT(F) C-Flange
Diaphragm material:9 – Santoprene H – Hytrel T - PTFE/Santoprene
Ball material:9 -Santoprene H – Hytre T – PTFE A - Acetal
Ball seat material:P/K –Polypropylene/Kynoar SS –Stainless Steel
Pump material: SS –Stainless Steel AL –Aluminum Alloy CI- Carbon Steel P/K –Polypropylene/Kynoar
Maximum Applied Temperature Limits (diaphragm / ball / seal material)
Acetal ···············································40°- 150°F (4.4- 65.5°C)
Santoprene·········································-40°- 225°F (-40°- 107.2°C) ·················································40°- 220°F (4.4°- 104°C) Nitrile··················································10°- 180°F (-12°- 82°C) Viton···················································-40°- 350°F (-40°-176.6°C) Hytrel···················································-20°-150°F (-12°- 93°C) Kynar···················································10°-200°F (-28.9°- 65.5°C) Polypropylene··········································32°- 175°F (0-79.4°C)

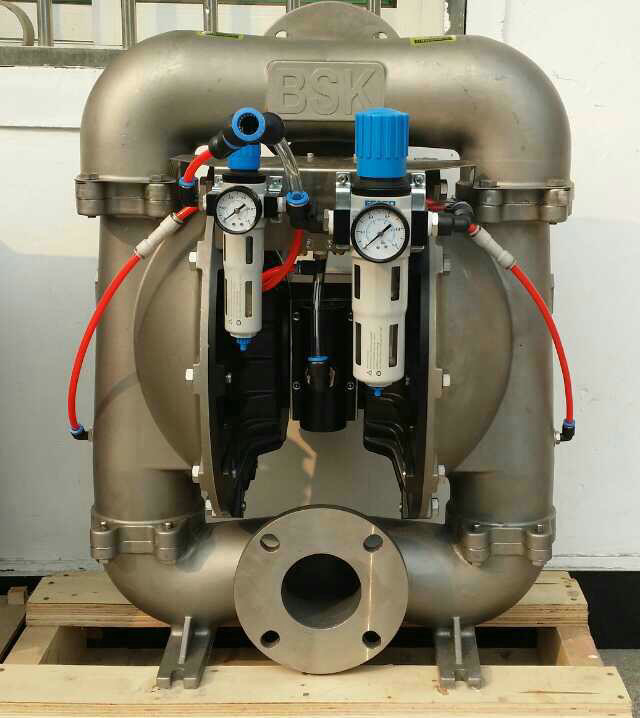

Double Acting Diaphragm Pump Details
